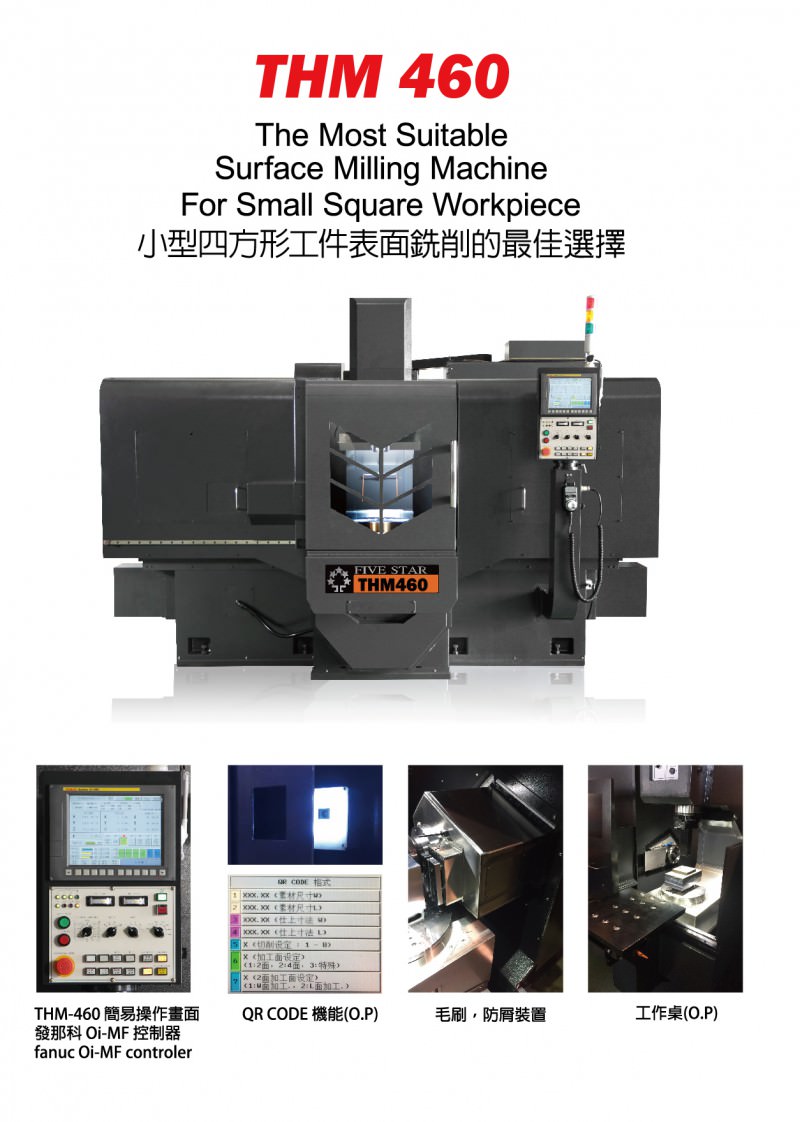

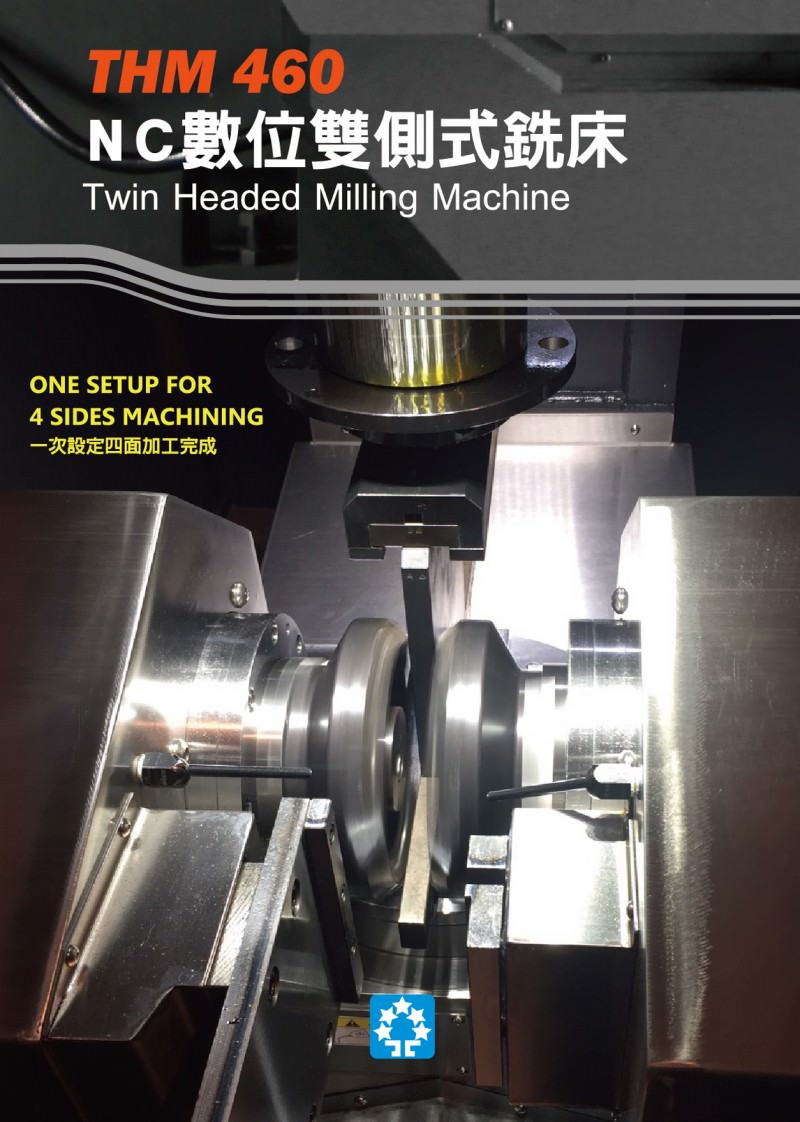

THM-460

NO：	THM-460
Specifications：	460460150mm

	Specification	THM460
Travel & table	Index table	Ø320
	X axis	620mm
	Y-Z axes	330mm
	Distance from spindle nose to table center	68~398mm
	Distance from table surface to spindle center	115mm(135mm O.P)
	Indexing degree of table	0°,45°,90°,135°
Machining capactiy	Widthｘlength of workpiece	20~460mm × 20~460mm
	Max.thickness of workpiece	150mm(180mm O.P)
	Chamfering size	Max C10
	Diameter of face mill cutter	Ø160mm(Ø200mm O.P)
Feed speed	Rapid feed speed X-axis	15m/min
	Rapid feed speed Y/Z-axes	10m/min
	Cutting feed speed（Manual）	1~5000mm/min
	Cutting feed speed （Auto）	1~2000mm/min
Spindle
	Shape of spindle noses	Ø50.8 (Ø47.625 O.P)
	Spindle speed	100~1000rpm/min
Motor	Spindle motor	11kw
	X-axis motor	2.5kw
	Y.Z-motor	1.4kw
	Inder table moter	1.4kw
	Work clamp moter	2.5kw
	Chip conveyor moter	0.2kw
	Lubricating oil motor	0.018kw
Other	Machine weight	7500kg
	Table loading capacity	320kg

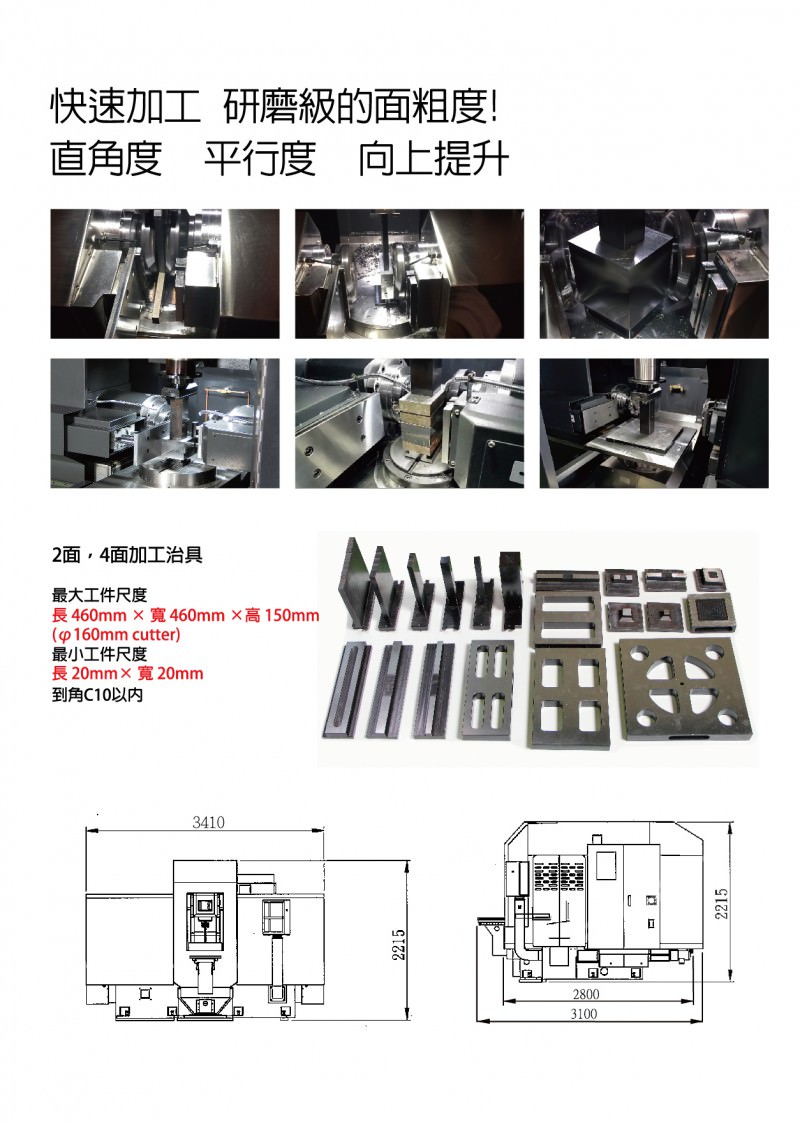

	Machin size W x L x H	3410 × 2800 × 2200 mm
	Voltage source capacity	3Ø AC 220V 38KVA
Standard accessories	1. Index table
	2. Screw-type chip conveyor
	3. Tool box with tools
	4.Half cover
	5. four-surfaces machining jig fixtures
	6. Workpiece measuring system
	7. Workpiece setup system
	8. Chipair blower
	9. Work light
	10. Signel light 3 steps
	11.Workpiece Clamping:AC servo motor
Optional accessories	1. Designated machine color
	2. Work station
	3.spindle cooling system
	4.Full cover (CE)
